Thus, endeavored to provide individuals and communities with sustainable energy solutions. Our mission is to accelerate the adoption of renewable energy and contribute to a cleaner, greener future for all.(SB1)
Renewables: Providing cleaner energy to our world. Renewable energy is at the core of the solutions we provide to address our clients' varied requirements. Thus, sustaiablity assured, the green way!(SB2)
From homes to industries, we provide an extensive spectrum of energy solutions designed to solve the underlying challenges and bring about beneficial transformations.(SB3)
Products and
solutions(SIB1)

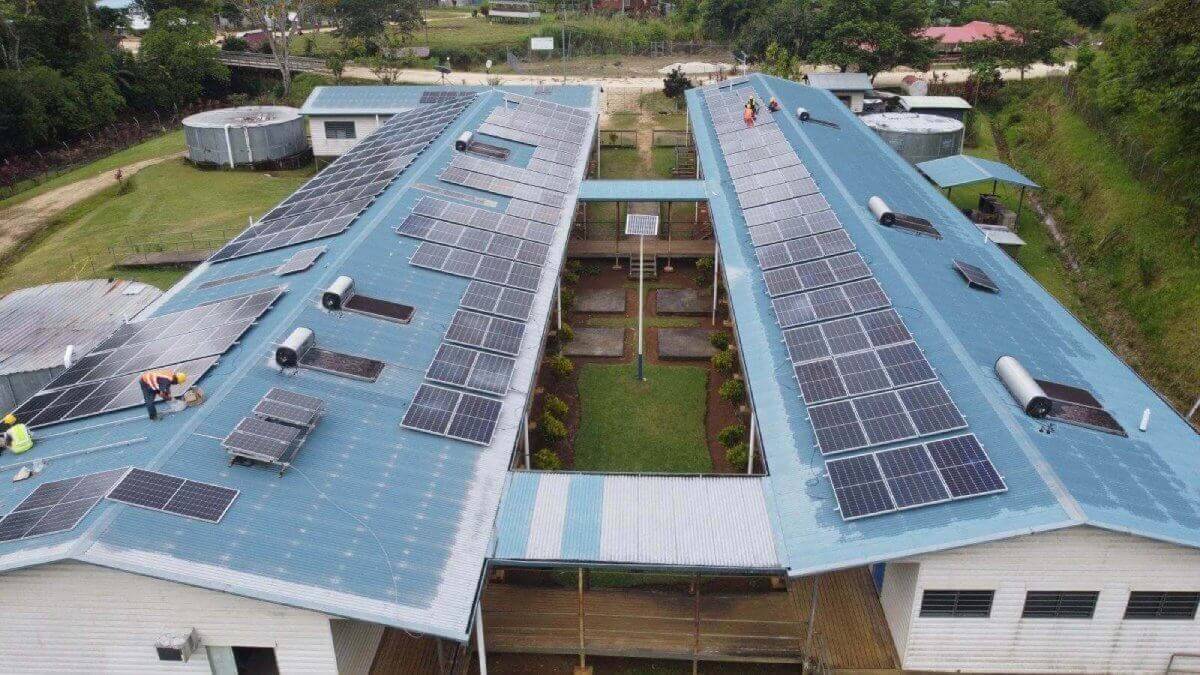

Energy Engineering for micro-grid to utility-scale solar energy generation and distribution / delivery, encompassing system design, procurement information, and installation of the entire commercial solar system. After delivering a completely functioning solar power plant, GREEN will continue to perform routine inspections and maintenance to ensure the solar system operates at peak efficiency.(SB4)
EPC Energy
Services(SIB2)
Achieving "net zero" carbon emissions is a crucial objective of GREEN. This means that it is necessary to remove CO2 from the atmosphere at the same rate at which it is released. Our target is to provide 100% carbon-free energy to all of our clients by the year 2050 through the utilization of renewable energy sources and environmentally sound business practices in all of the energy solutions we offer. (SB5)
It is Now
or Never(SIB3)
Empowering Lives Through the Application of Renewable Energy Technologies
A Front-runner in Sustainable Living and Renewable Energy Solution Provider in Papua New Guinea, GREEN Limited has its global presence in the United States of America, Australia, Singapore, and India, which helps to bring out the best of Product design, development, and Project delivery strategies, as well as prompt service and a support matrix that is more suitable to PNG while maintaining World Class standards. GREEN Limited complies with international standards and quality management systems, and it has been awarded the ISO 9001 certification. (SB1)
Energy Autonomy: A Mission in Action
GREEN Limited renewable energy solutions and services are predominantly targeted at rural areas that lack access to conventional energy sources and utilities. Our products and services are primarily designed to empower rural communities for economic and social growth, thereby improving their quality of life in a sustainable and healthful manner. Our delivery of solutions, products, and services ensures environmental value addition. (SB2)
In an era where sustainability and environmental consciousness are paramount, the quest for a greener future is more important than ever(STB1)
Lorem ipsum dolor sit amet consectetur. Blandit pellentesque nunc mauris vestibulum enim. Pulvinar risus condimentum vel imperdiet nisl netus. Turpis cras amet tristique donec. Velit dolor sociis nec euismod id ut molestie cursus vel. Sit sodales lorem in lectus. Nunc dictum ultricies a diam sodales. Tempus et velit sapien dolor lacus in arcu. (SB1)
Lorem ipsum dolor sit amet consectetur. Blandit pellentesque nunc mauris vestibulum enim. Pulvinar risus condimentum vel imperdiet nisl netus. Turpis cras amet tristique donec. Velit dolor sociis nec euismod id ut molestie cursus vel. Sit sodales lorem in lectus. Nunc dictum ultricies a diam sodales. Tempus et velit sapien dolor lacus in arcu. (SB2)
Lorem ipsum dolor sit amet consectetur. Blandit pellentesque nunc mauris vestibulum enim. Pulvinar risus condimentum vel imperdiet nisl netus. Turpis cras amet tristique donec. Velit dolor sociis nec euismod id ut molestie cursus vel. Sit sodales lorem in lectus. Nunc dictum ultricies a diam sodales. Tempus et velit sapien dolor lacus in arcu. (SB3)
Lorem ipsum dolor sit amet consectetur. Blandit pellentesque nunc mauris vestibulum enim. Pulvinar risus condimentum vel imperdiet nisl netus. Turpis cras amet tristique donec. Velit dolor sociis nec euismod id ut molestie cursus vel. Sit sodales lorem in lectus. Nunc dictum ultricies a diam sodales. Tempus et velit sapien dolor lacus in arcu. (SB4)
Each solar project begins with a thorough analysis of the requirements set by the project owner. Our experts closely analyze the desired deliverables and propose the most appropriate solution accordingly. Highly skilled project management and engineering teams will ensure that the proposed plans are compliant with the necessary standards and generate maximum return on investment.
GREEN Solar experts perform yield and performance ratio (PR) analysis that helps assess the project’s profitability. The analysis is a reliable basis for the business case of your renewable energy project.
After the initial assessments are complete, the GREEN Solar team starts working on the executive design of the PV system. In this stage, we select all the necessary final components and create the construction design. Additionally, the team investigates the most efficient grid connection scenarios to assure uninterrupted energy generation.
All stages of the project are supervised by experienced engineers who keep track of each phase of the project implementation and ensure that your subcontractor delivers the project in line with the contract specifications.
All documentation is continuously updated throughout the process of project development to reflect all changes or improvements made. GREEN Solar team assures that all information regarding the project is available to the client at any moment.
Technological advances in solar modules, inverters, substations, and other auxiliary equipment are highly rapid. GREEN Solar team constantly tracks the latest developments in solar technologies and is dedicated to providing the most advanced and reliable equipment for our clients. With more than 10 years of experience, GREEN Solar has a vast network of suppliers and manufacturers in the solar energy industry. Having a strong supplier network ensures reliable access to the best quality equipment for the most reasonable price in the market.
Our team seeks close collaboration with each partner and believes that open communication is the key to any project’s success. Project owners and managers are included in all procurement processes to ensure that installed equipment meets client expectations and demands for price, functionality, and scale.
Transparency and close cooperation throughout the process renders a well-defined project scope with no hidden charges or inflating costs. Also, a detailed list of items and services is provided and updated throughout the project development. (SB2.1)
In pursuit of excellence, GREEN Solar has adopted the international certificates of ISO 9001, ISO 14001, and ISO 45001 to assure the highest quality and safety during the project construction of any scale. Our team of highly experienced project and construction managers makes sure that each project meets its deadlines and does not exceed the budgets agreed. Project managers keep the stakeholders up to date, provide weekly briefings, and address further actions to be taken in the project implementation process.
GREEN Solar team adopts the HSE (health, safety, and environment) management in each construction site. Comprehensive RAMS (Risk Assessment Method Statement) and regular inspections significantly reduce the probability of HSE incidents throughout any stage of the solar project execution.
During the construction, project managers and engineers keep track of all activities, logistics, and installed equipment to ensure that provided work, installed components, and other auxiliary equipment are up to par with the strictest quality standards.
Each solar project begins with a thorough analysis of the requirements set by the project owner. Our experts closely analyze the desired deliverables and propose the most appropriate solution accordingly. Highly skilled project management and engineering teams will ensure that the proposed plans are compliant with the necessary standards and generate maximum return on investment.
GREEN Solar experts perform yield and performance ratio (PR) analysis that helps assess the project’s profitability. The analysis is a reliable basis for the business case of your renewable energy project.
After the initial assessments are complete, the GREEN Solar team starts working on the executive design of the PV system. In this stage, we select all the necessary final components and create the construction design. Additionally, the team investigates the most efficient grid connection scenarios to assure uninterrupted energy generation.
All stages of the project are supervised by experienced engineers who keep track of each phase of the project implementation and ensure that your subcontractor delivers the project in line with the contract specifications.
GL-SS-HLS-A010.4
GL-SS-HLS-A010.2
GL-SS-HLL-A012.2
GL-SS-HLM-A011.3
GL-SS-HLL-A012.1
GL-SS-HLM-A011.2
GL-SS-HLS-A010.3
GL-SS-HLS-A010.1
GL-SS-HLL-A012.3
To lift up living standards sustainably, it is crucial to invest in infrastructure that supports a better quality of life.
Solar Powering Studies
GREEN Solar Student Study Kit is a sturdy design and effective solution for students to study with high efficiency lighting and features sleek, flexible build with fan with variable speed control and ensures a comfort zone for students with less fatigue. Its flexible neck can be adjusted to a comfortable position with portable digital writing tablets 10 inch with replaceable battery which improves the capabilities and also features with digital alarm.
Enhance the student capabilities and improve life learning, healthy and happy living with digital enabled systems such as Digital Writing Tablet, Digital Alarm Clock and effective lighting with a fan which illuminates your study desk efficiently for a long time.
3.2V/6000mAh LiFePO4 battery
6 W Poly-crystalline Solar panel
DC 5V
Replaceable battery CR 2016
with Lithiumion battery

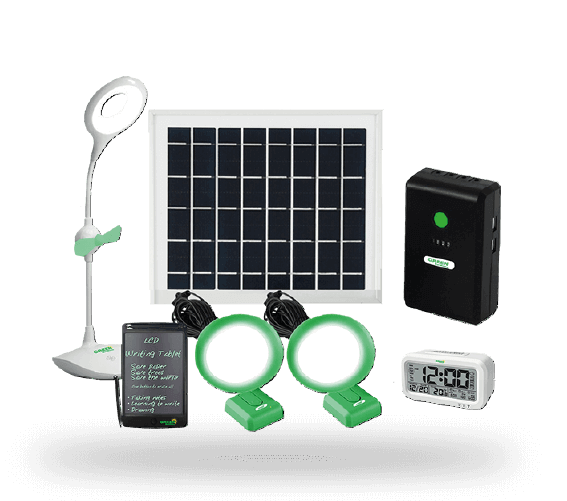

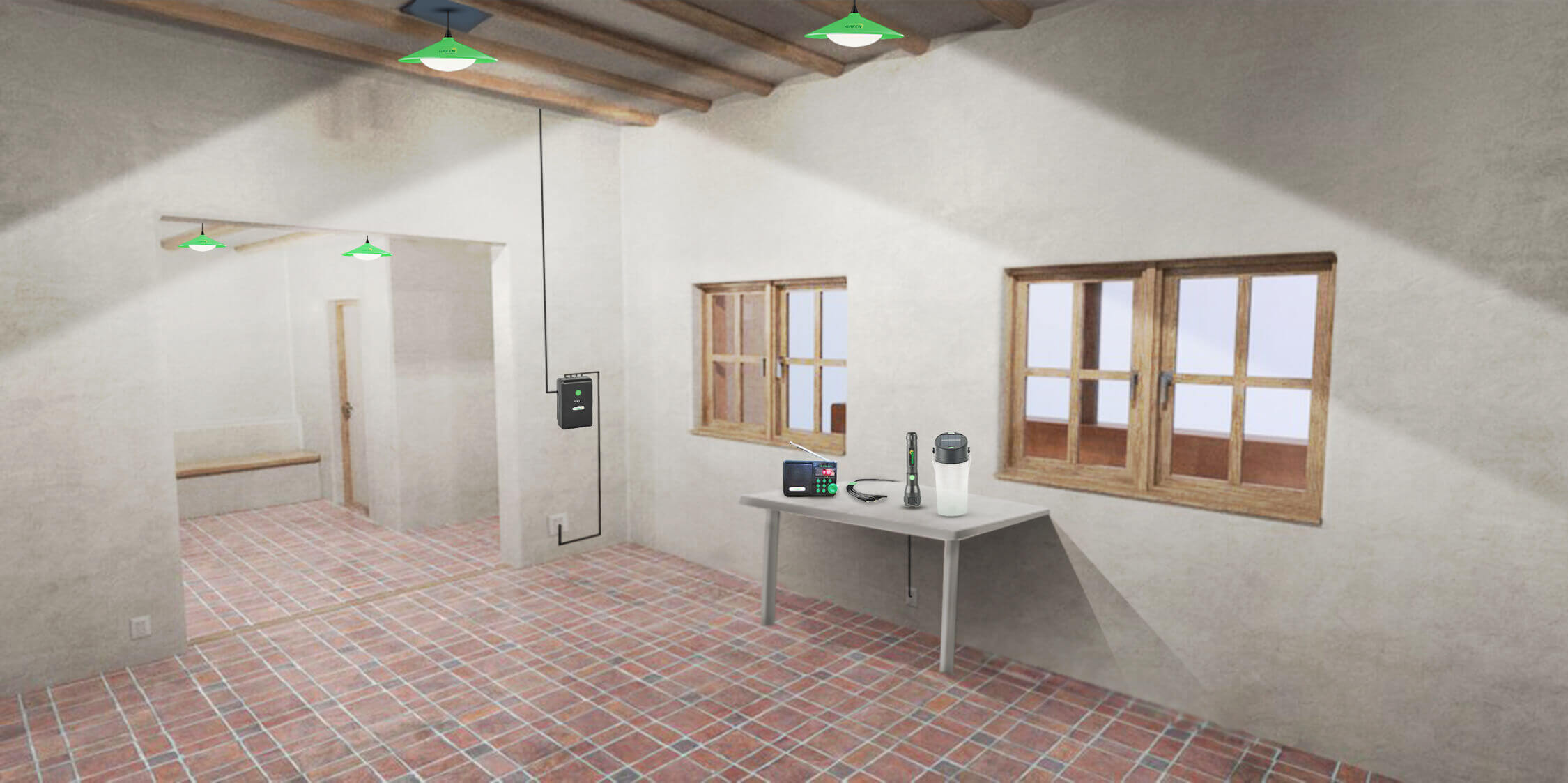

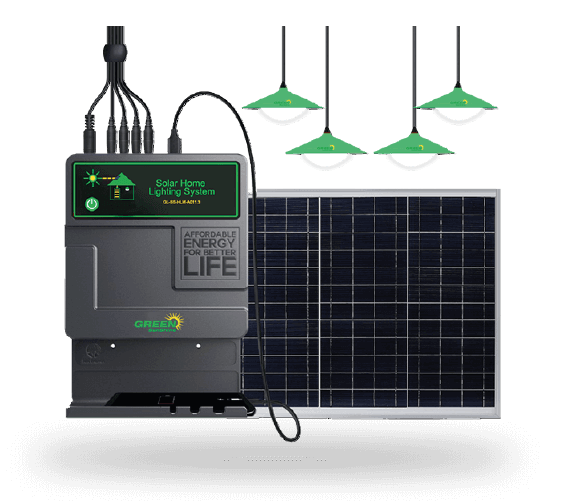

We Light up Homes
Illuminate your home and charge your mobile phone and Flashlight with solar energy

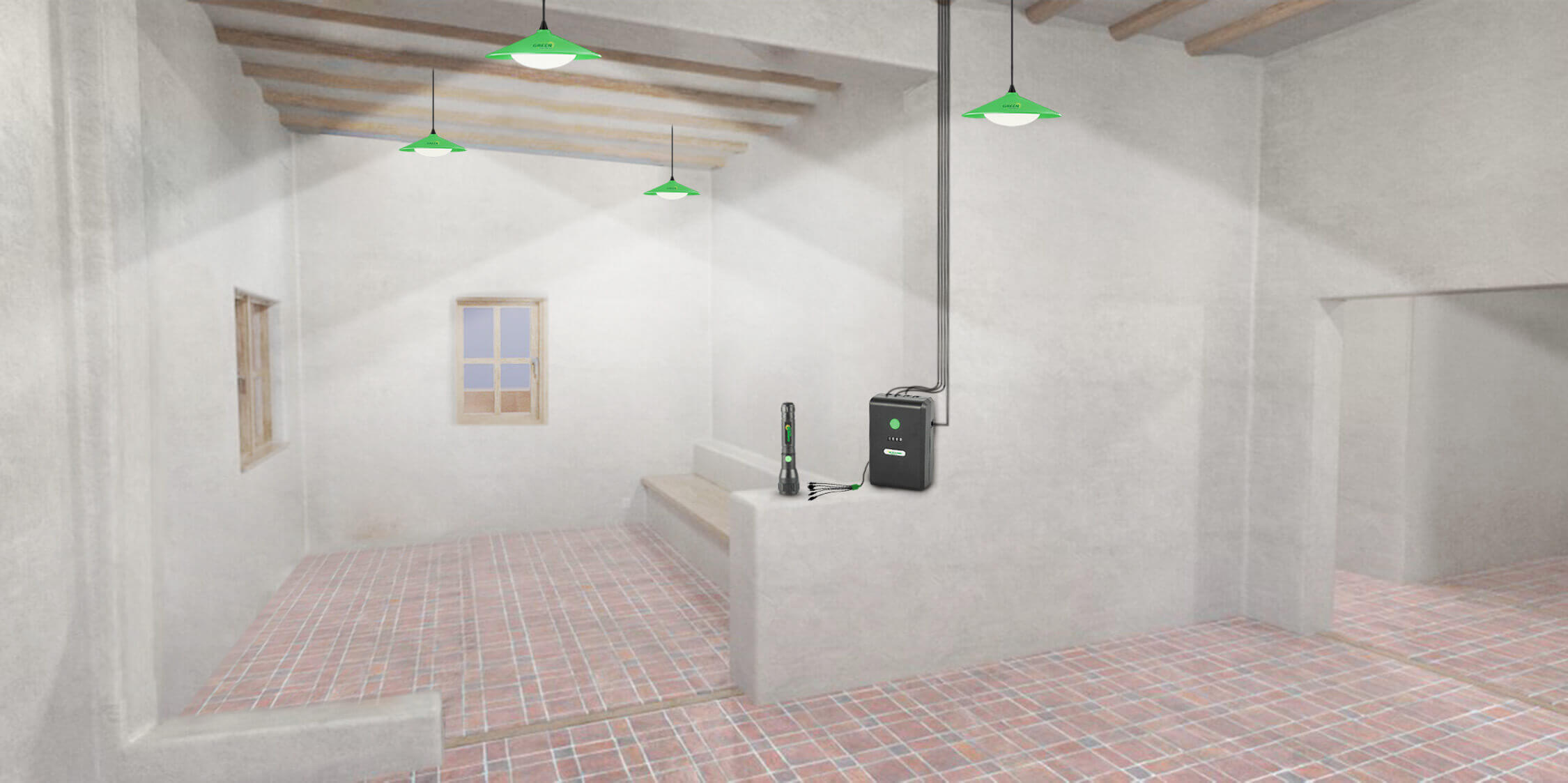

GREEN SunShine Solar Home Lighting System is an intuitive user interface off grid power solution to light up the rural homes and to augment the life value development of rural communities. This system is equipped with features such as lighting, flashlight and USB charging cable for mobile charging in a device.
3.2 V 6000mAh LiFePO4
8W/11V Poly-crystalline Solar panel
3.7V 1800mAh Li-ion battery
Multiple pins(5 in 1)
We Light-up & Lift-up Living Standard
Illuminate your home, charge your mobile phone, experience a healthy and happy living with FM Radio, DC television and fan options.
The GREEN SunShine Solar Home System is a standalone system with ergonomic design. The system also features high energy efficient LED lamps and incorporates portable lanterns with integrated radio and mobile phone charger provision in a device and equipped with a Pedestal Fan DC 12V ensures an efficient air circulation cooling to any indoor space and DC TV ensures an entertainment environment. This system is an ideal solution for off-grid areas.
12.8V/18000mAh
60W Poly-crystalline Solar Panel
3.7V 1800mAh
Li-ion battery
3.7V/1000mAh
Li-ion battery
32 inch
Multiple pins(5 in 1)
We Light-up & Lift-up Living Standard
Illuminate your home, charge your mobile phone, experience a healthy and happy living with DC television and DC fan options.

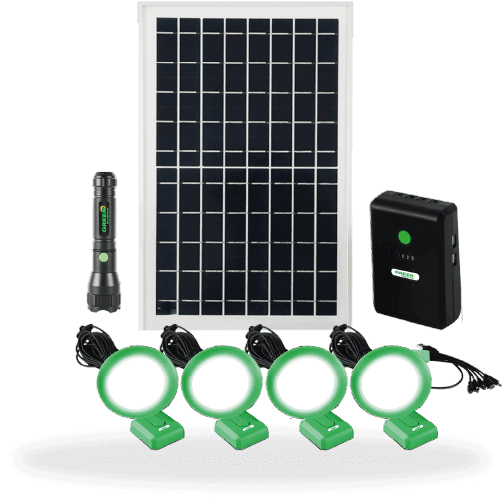

GREEN SunShine Solar Home System (SHS) is a robust design. It’s an imperative necessity for non-electric rural areas and as a reliable lighting system for essential domestic applications. This system ensures a comfortable level of illumination to rural households.The SHS consists of a solar panel, control box, luminaries, mobile charger and flashlight options in a device.
6.4V/6000mAh LiFePO4 battery
20W Poly-crystalline
300lm * 1 pc,
130ml * 3pcs
3.7V 1800mAh
Li-ion battery
USB Charging cable Multiple pins (5 in 1)
We Light-up and Lift-up Living Standard
Illuminate your home, charge your mobile phone, experience a healthy and happy living with Solar powered fan and television provisions.

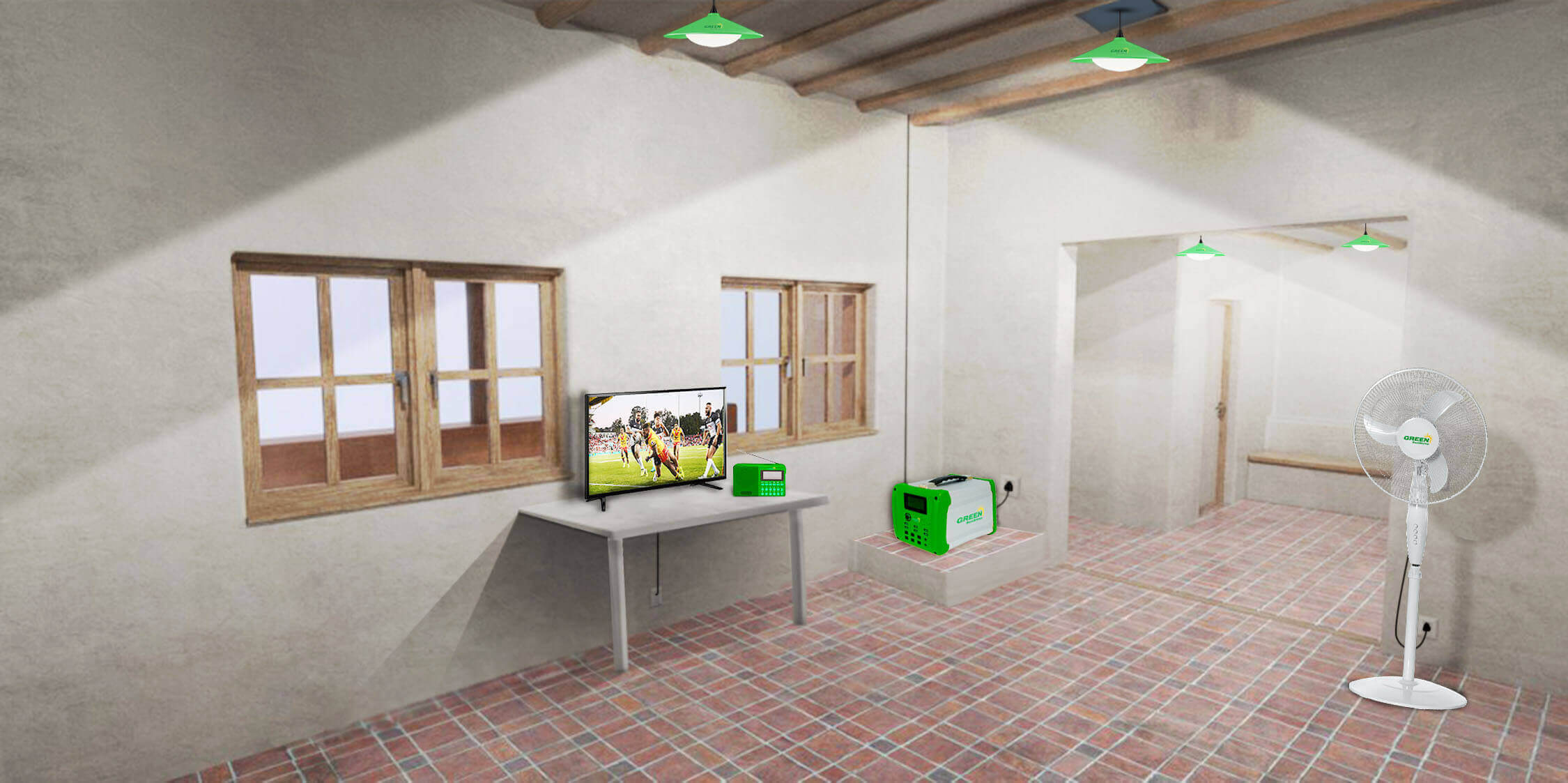

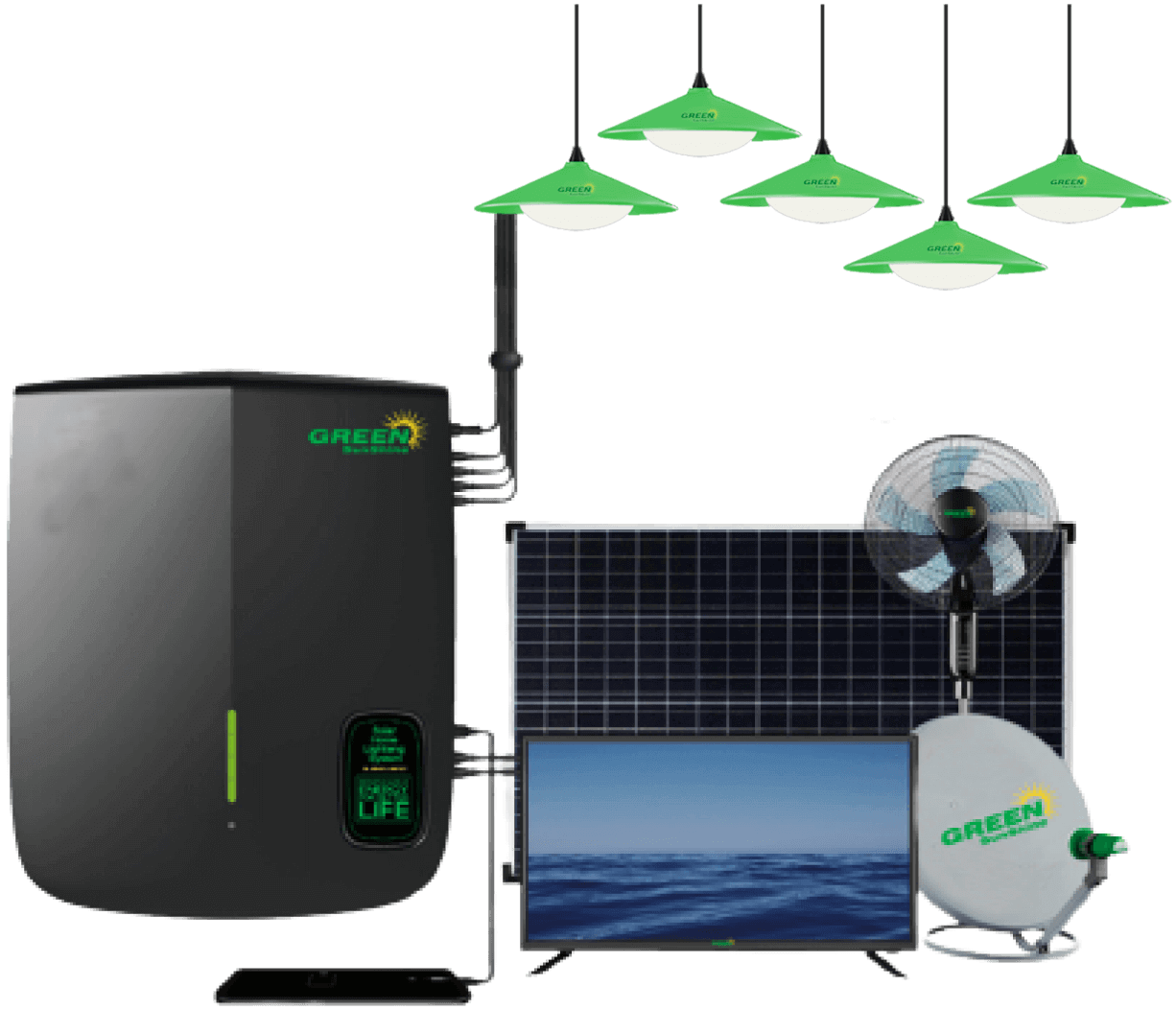

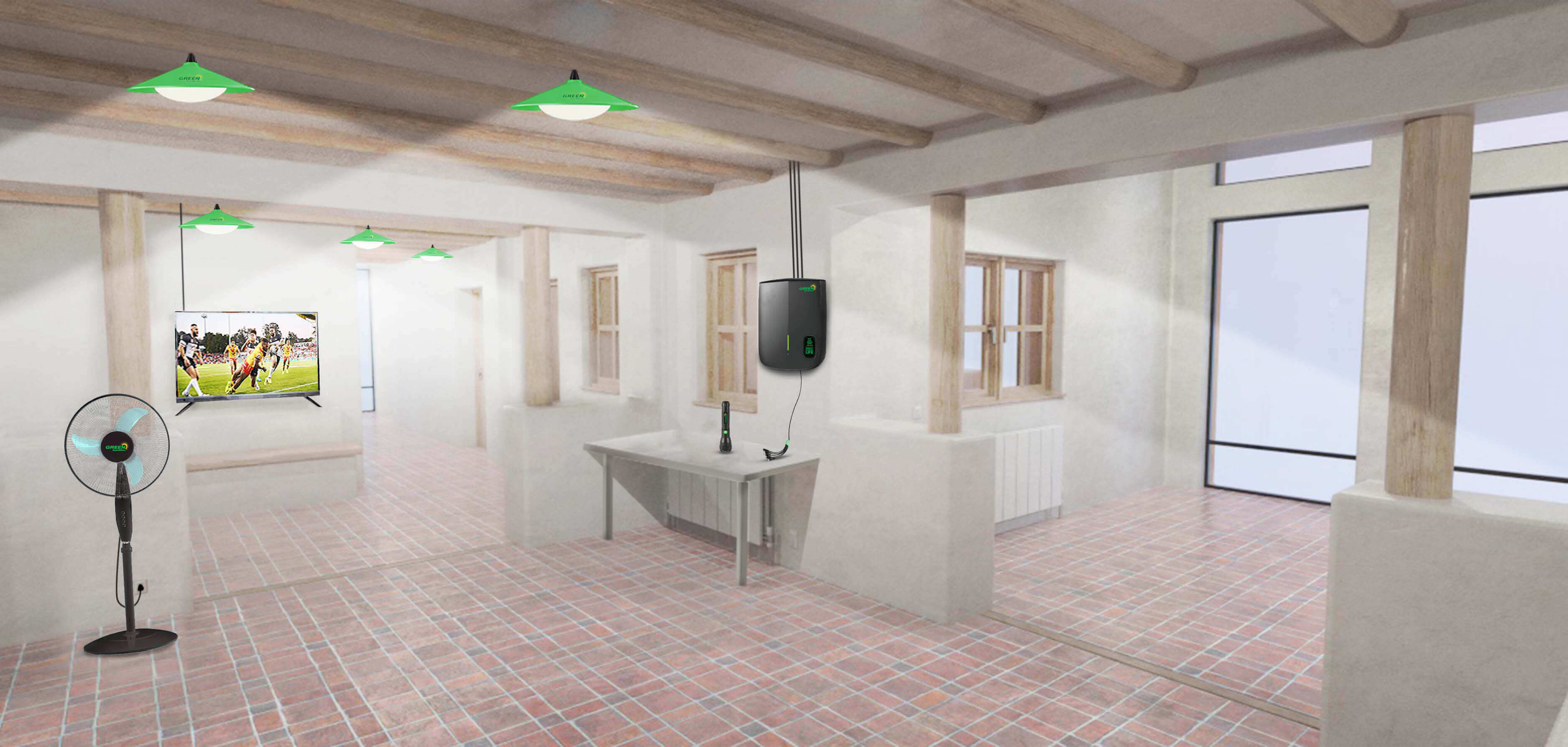

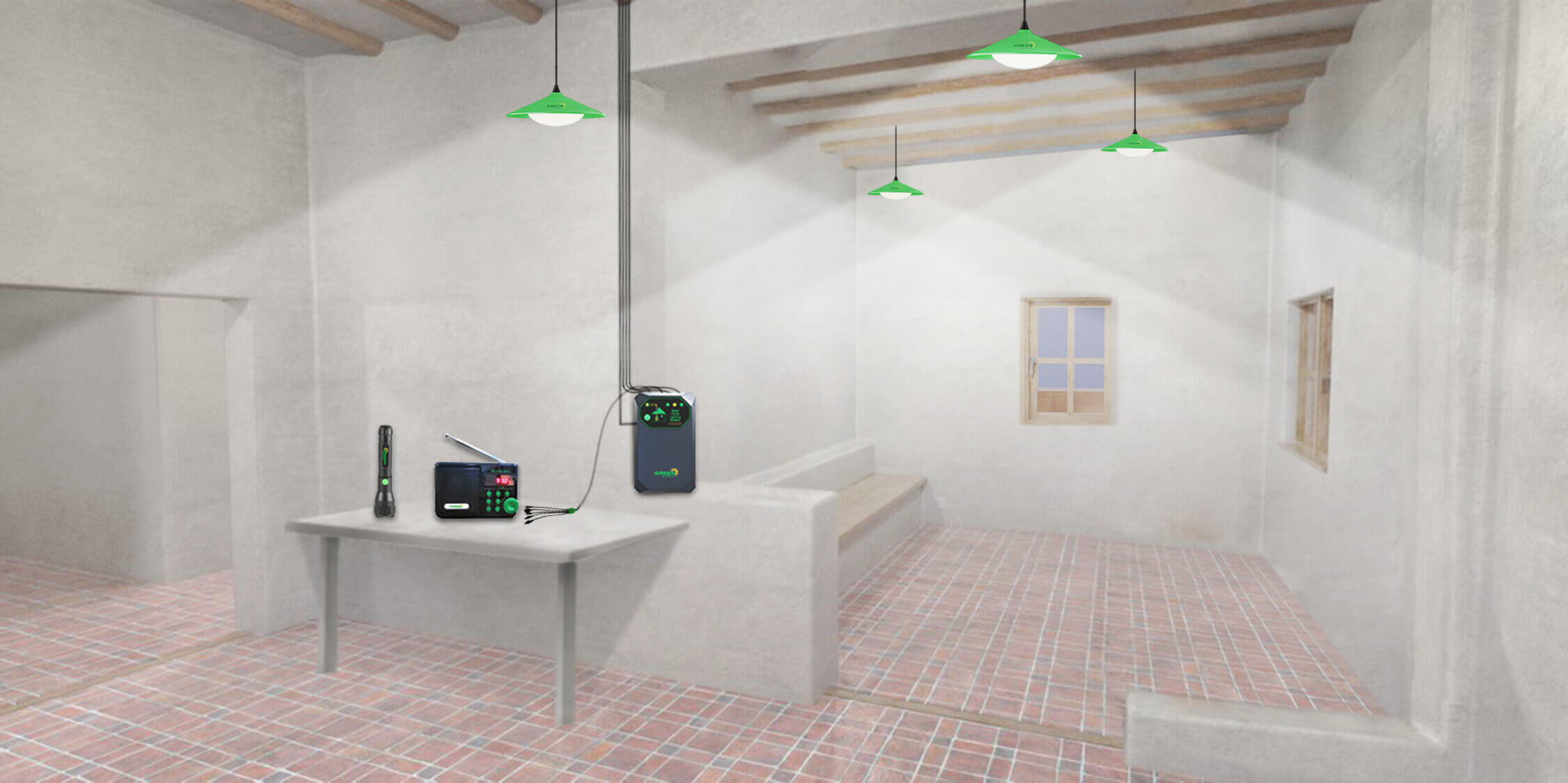

The GREEN SunShine Solar Home Lighting System is a reliable and effective solution to provide energy access to rural households. This modern and energy efficient system consists of a solar panel, control box, lighting, cell phone charging provisioning, television & fan as an option in a device. This is an ideal solution for off-grid areas.
12.8V/36AH LiFePO4 battery
100 W Poly-crystallineSolar panel
Multifunctional Radio with MP3 Player
32 inch Television (Optional)
16 inch Fan (Optional)

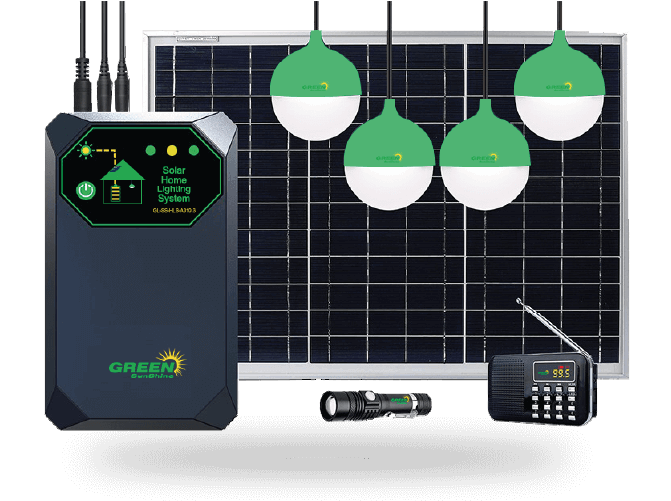

We Light-up & Lift-up Living Standard
Illuminate your home, charge your mobile phone, experience a healthy and happy living with portable lanterns, flashlight and radio options.

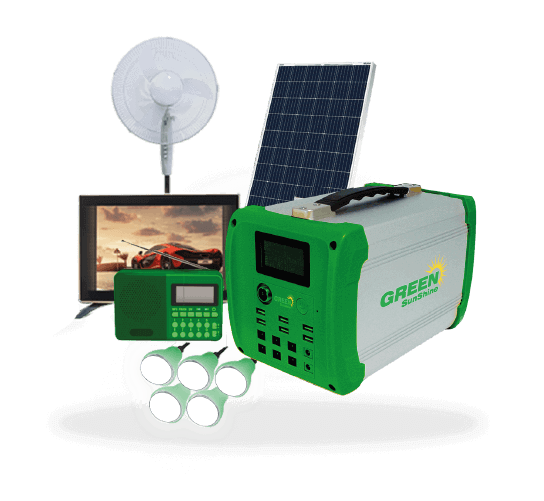

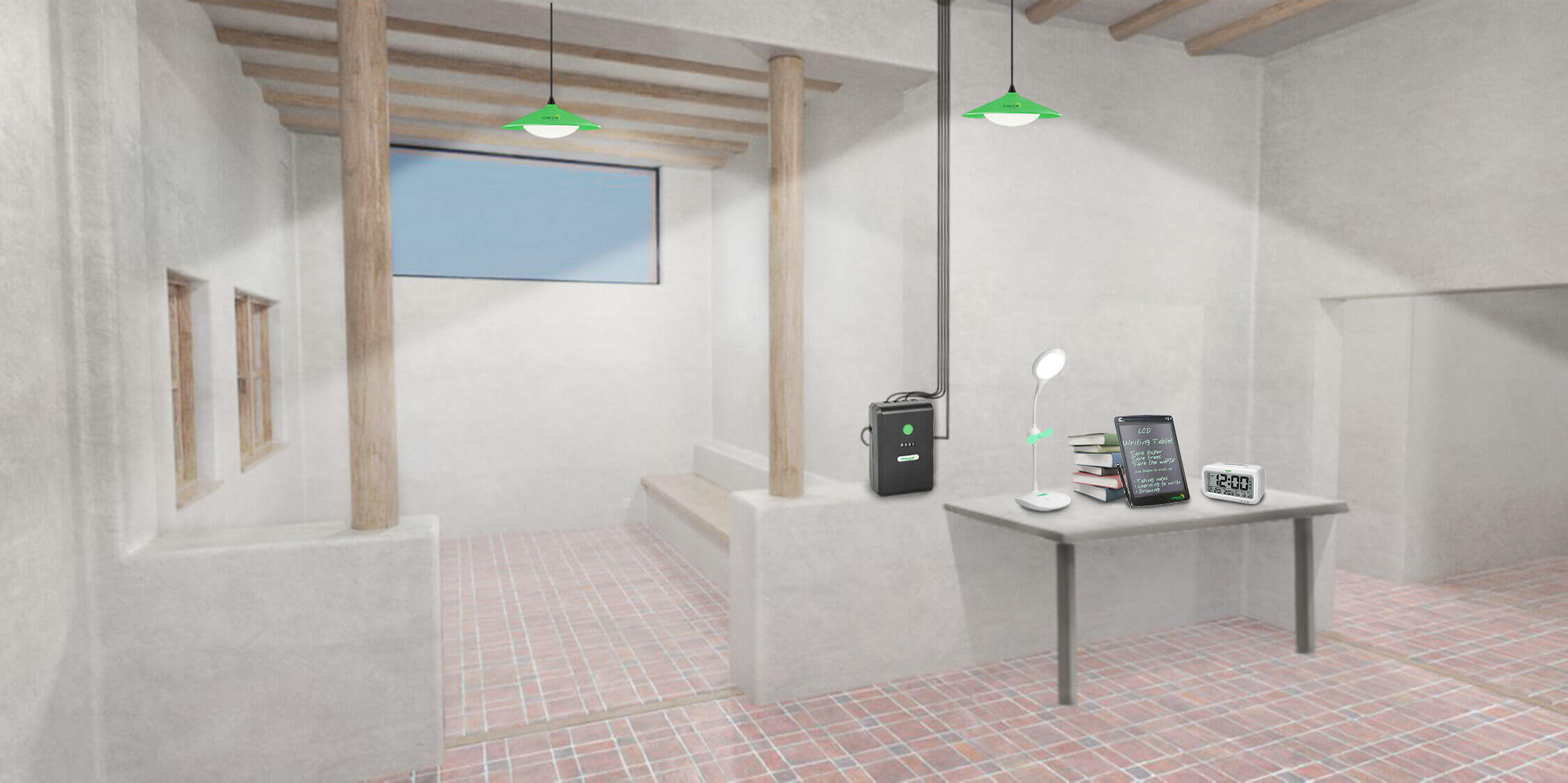

GREEN SunShine Solar Home Lighting System harnesses thesun’s energy to light up the homes and power the applianceswhich integrate lighting, cell phone charging, radio & portablelantern for charging prospects in a device. This system is anideal solution for off-grid areas and enriches the living standards of rural communities.
6.4V/6000mAh LiFePO4 battery
20W Poly-crystalline Solar panel
3.7V 1800mAh Li-ion battery
Multifunctional Radio with MP3 Player
3.2V 600mAh LiFePO4
We Light-up & Lift-up Living Standard
Illuminate your home, charge your mobile phone, experience a healthy and happy living with portable flashlight and radio options.
GREEN SunShine Solar Home System (SHS) is a compact independent electrification system designed for rural areas to satisfy their basic requirements such as lighting and entertainment etc. This system is integrated with lighting, cell phone charging, flashlight and radio for charging in a device. SHS will play a vital role in the development of rural communities and to improve their living environment.
6.4V/6000mAh LiFePO4 battery
20W Poly-crystalline Solar panel
200lm * 2 pcs
,130ml *2 pcs
3.7V 1800mAh Li-ion battery
Multiple Pins (5 - IN - 1)
We Light up Homes
Illuminate your home and charge your mobile with Solar energy

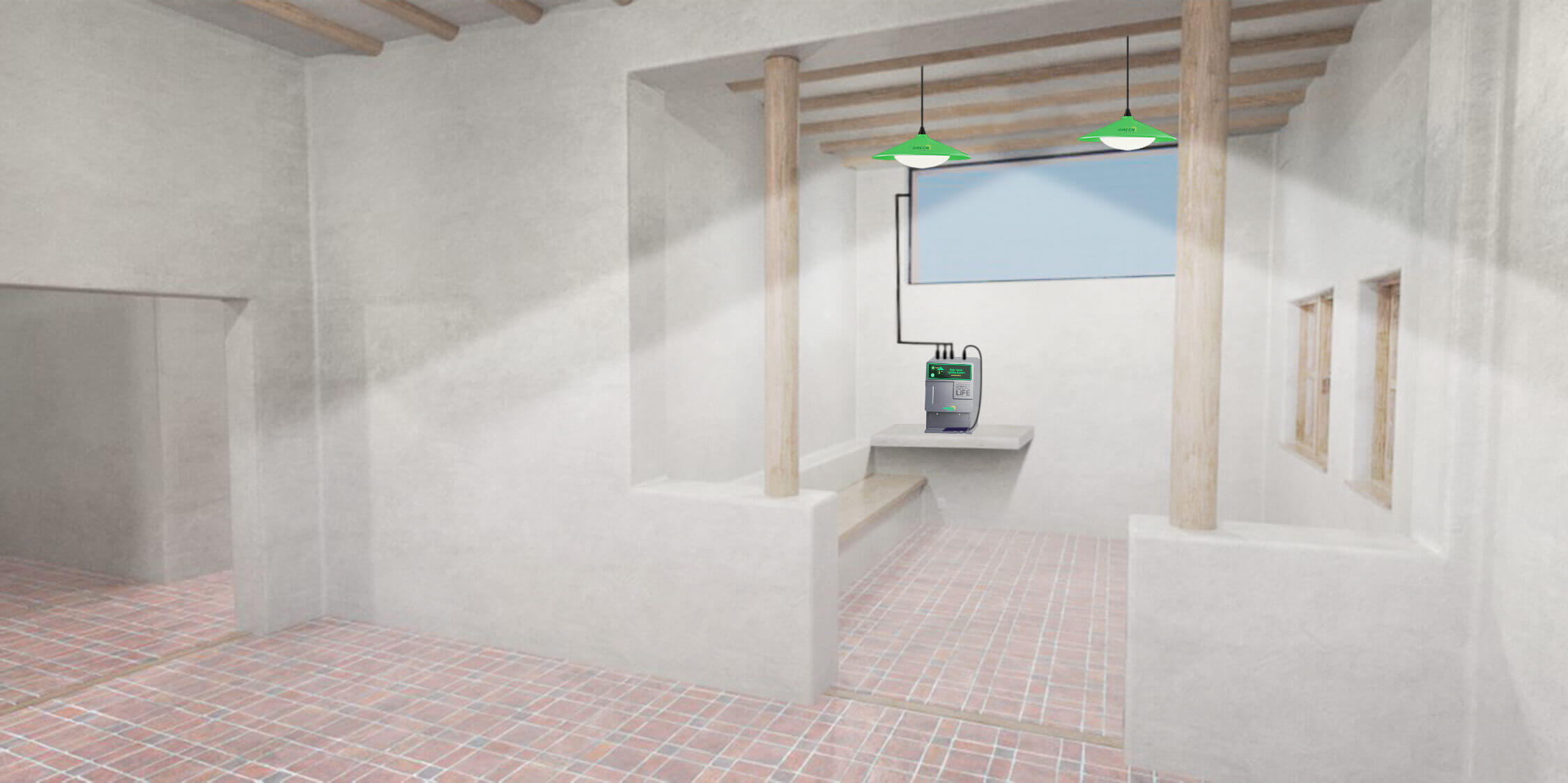

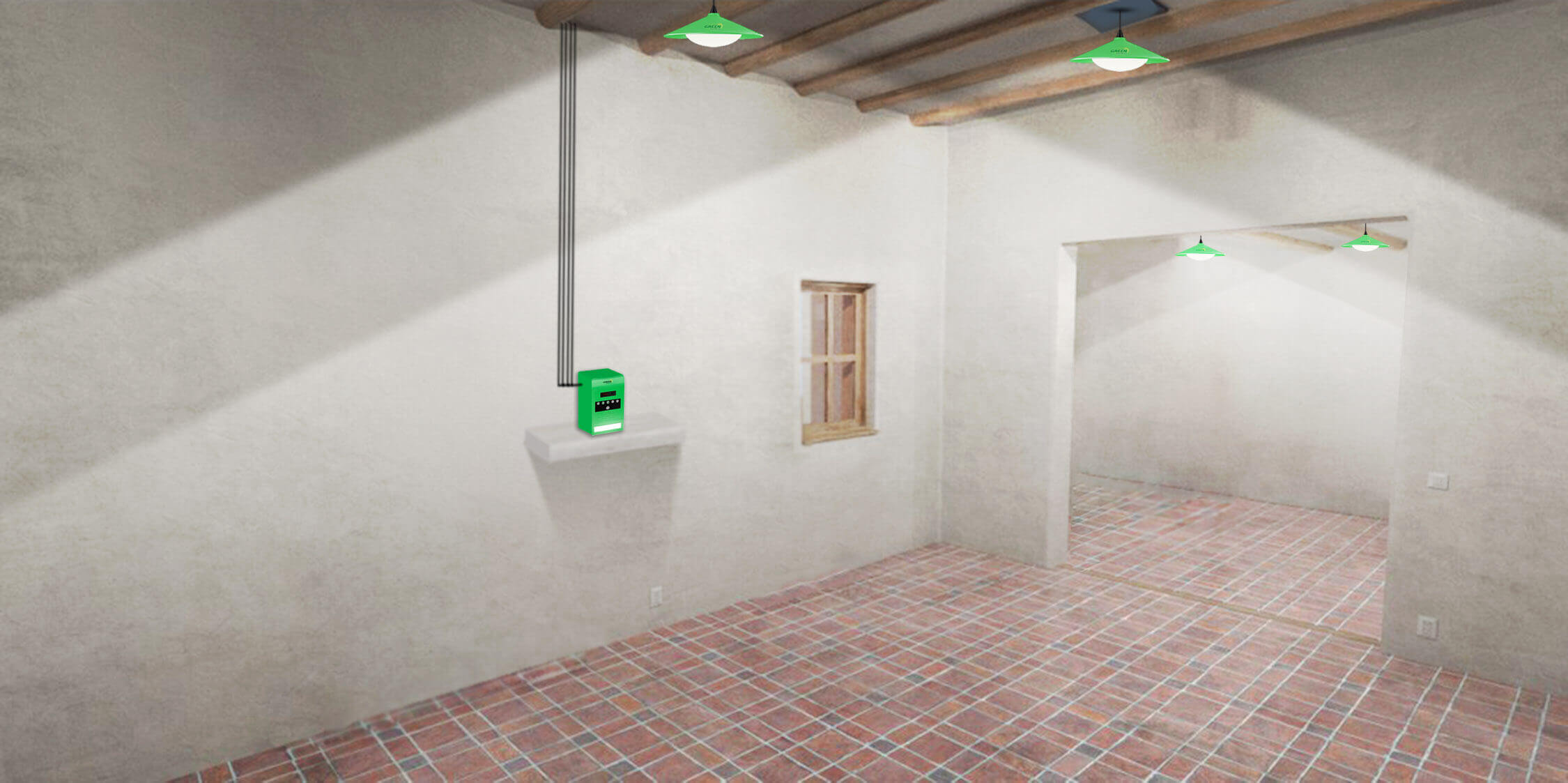

The GREEN SunShine Solar Home Lighting System is a highly portable off grid system with an effective ergonomic appearance and design. This is an ideal solution with a wide range of applications including lighting, FM radio, wall light ensures meritorious illumination and has an inbuilt mobile charging port in a device which enlightens the living standard of rural communities.
6.4 V
6000mAh LiFePO4
battery + 12
pcs LED for wall light
8W/11V Poly-crystalline Solar panel
We Light-up & Lift-up Living Standard
Illuminate your home, experience a healthy and happy living with DC television and DC fan options.

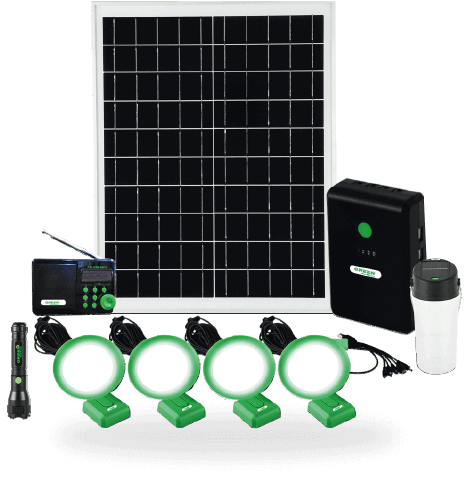

GREEN SunShine Solar Home System (SHS) equipped with outstanding features such as LED lighting, Radio, DC Fan and DC television. This system is an ideal solution for off-grid areas which harness the solar energy to power up the homes and power the appliances such as televisions, fans with solar home lighting systems.
6.4V 6000mAh LiFePO4 battery
60W Poly-crystalline Solar panel
500lm *1pc,200ml*4pcs
--
3.2V/6000mAh LiFePO4 battery
6 W Poly-crystalline Solar panel
DC 5V
Replaceable battery CR 2016
with Lithiumion battery
3.2 V 6000mAh LiFePO4
8W/11V Poly-crystalline Solar panel
3.7V 1800mAh Li-ion battery
Multiple pins(5 in 1)
12.8V/18000mAh
60W Poly-crystalline Solar Panel
3.7V 1800mAh
Li-ion battery
3.7V/1000mAh
Li-ion battery
32 inch
Multiple pins(5 in 1)
6.4V/6000mAh LiFePO4 battery
20W Poly-crystalline
300lm * 1 pc,
130ml * 3pcs
3.7V 1800mAh
Li-ion battery
USB Charging cable Multiple pins (5 in 1)
12.8V/36AH LiFePO4 battery
100 W Poly-crystallineSolar panel
Multifunctional Radio with MP3 Player
32 inch Television (Optional)
16 inch Fan (Optional)
6.4V/6000mAh LiFePO4 battery
20W Poly-crystalline Solar panel
3.7V 1800mAh Li-ion battery
Multifunctional Radio with MP3 Player
3.2V 600mAh LiFePO4
6.4V/6000mAh LiFePO4 battery
20W Poly-crystalline Solar panel
200lm * 2 pcs
,130ml *2 pcs
3.7V 1800mAh Li-ion battery
Multiple Pins (5 - IN - 1)
6.4 V
6000mAh LiFePO4
battery + 12
pcs LED for wall light
8W/11V Poly-crystalline Solar panel
6.4V 6000mAh LiFePO4 battery
60W Poly-crystalline Solar panel
500lm *1pc,200ml*4pcs
--
To lift up living standards sustainably, it is crucial to invest in infrastructure that supports a better quality of life.

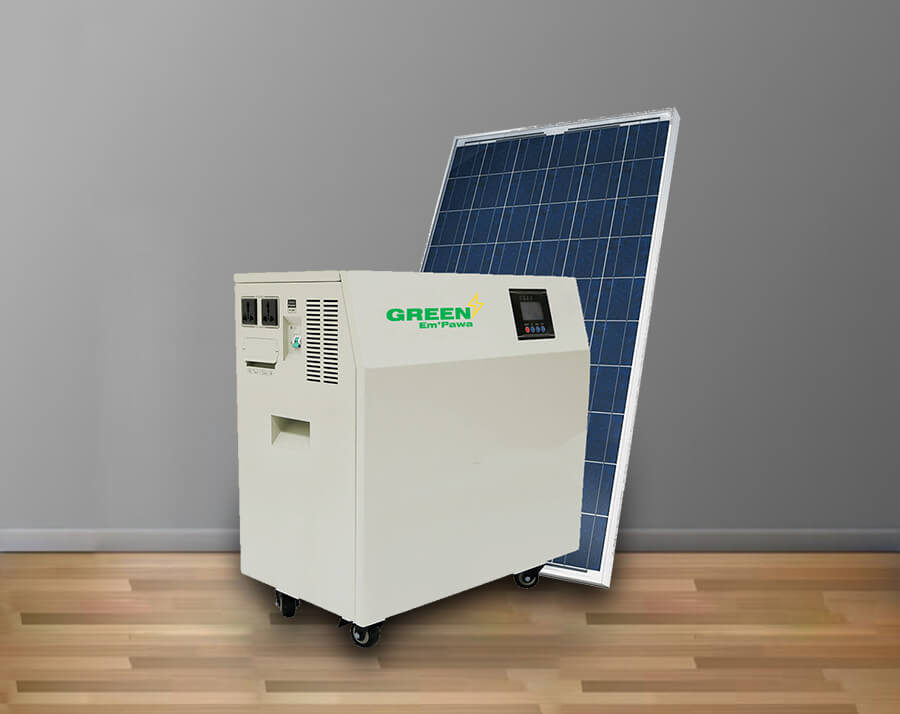

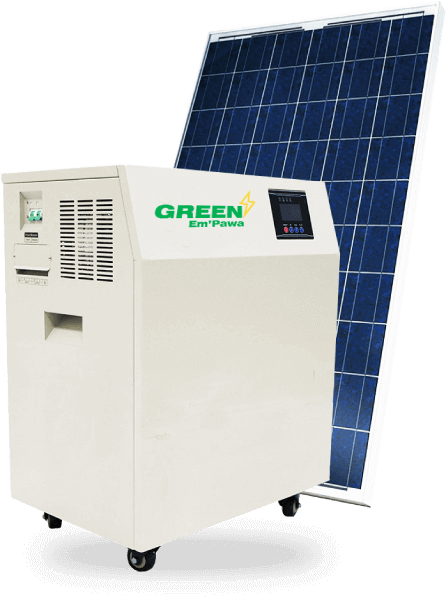

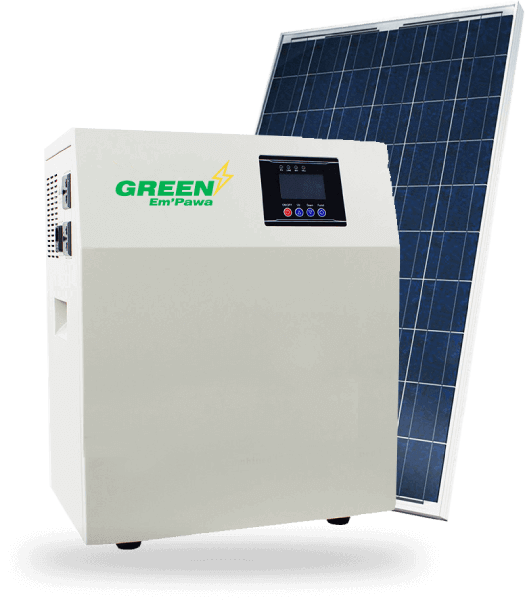

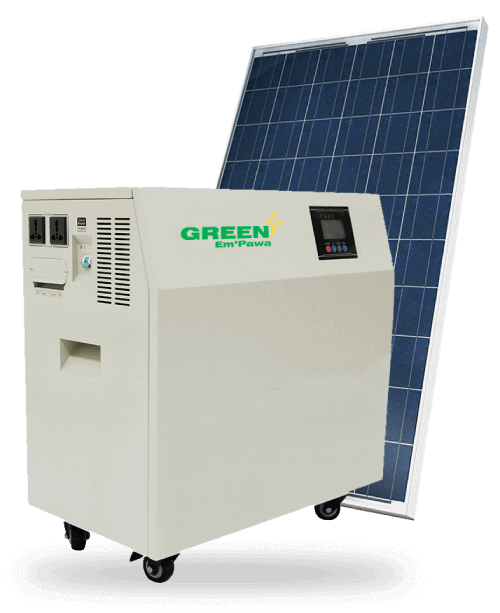

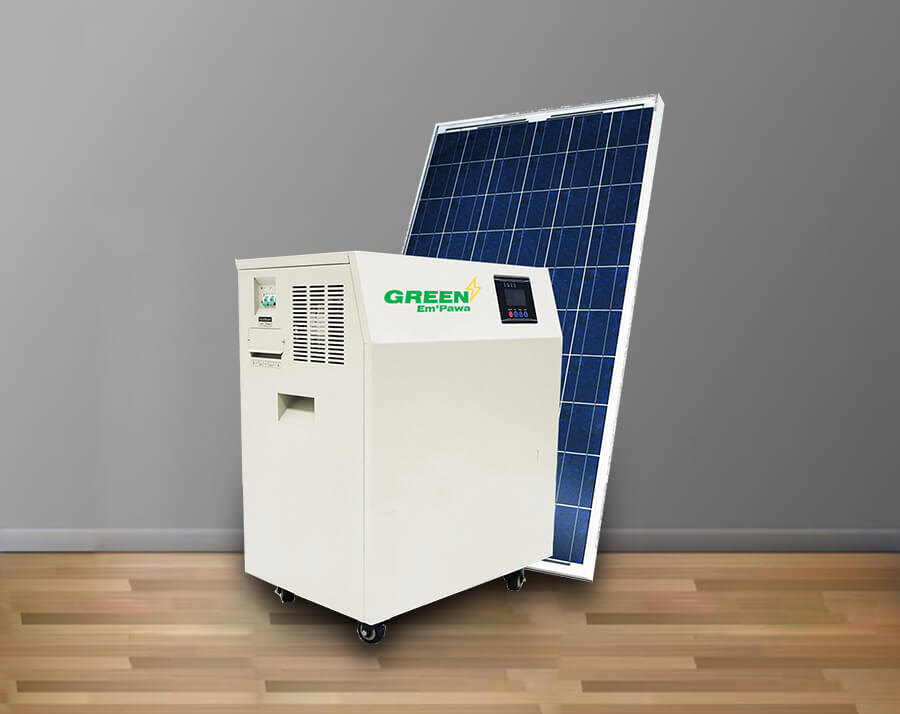

GREEN Solar Integrated Power System - 1200W Off Grid Solar Power System suitable for domestic applications. Inverter offers high performance, clean aesthetics, innovative features and easy installation. Ensures great value in a compact high frequency design. Multifunctional combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display, MPPT tracker with excellent energy harvest features, is easy to install. The system has been designed for a reliable environment with effective protection against overload, short circuit protection and with added values, undergoes multiple testing environments over stress testing. Inverter complies with the following certifications such as CE, ROHS, ISO, FC.
Battery rated voltage : 12.8VDC
Battery Capacity : 100Ah
Input Voltage & Frequency : 145-275V AC, 45-65Hz
MPPT Voltage & PV Power : 15V-150V DC, 400 W
Operating & Storage ambient temperature : -20 - +50℃ , -25 - +55℃
Battery Type : LiFePO4
Rated power : 1000 W
Output Voltage & Frequency : 220V AC, 50/60 Hz
DC12V, DC5V Output : 60W, 10W
Heat dissipation/Cooling & Operating/Storage ambient : Controlled by exhaust fan & 0-90%
GREEN Solar Integrated Power System - 4800W is a portable solar power system inverter, representing the most versatile multi-functions of inverter/charger/solar system. Embedded with combining functions of inverter, solar charger and battery which offers uninterrupted power support with multiple advantages beyond standard inverters. Additional features such as double CPU intelligent control technology, energy saving mode, and battery saving mode can be set up. The system includes smart fan control which is safe and reliable with pure sine wave output encompassed with an efficient high precision voltage function. Additionally, the system has an LCD real-time display device with inbuilt output overload, short circuit protection features, endowed with the MPPT built-in solar charge controller. Automatic operations of the inverter the use of the process does not require human values. The Solar Integrated Power System supports television, fan and lighting appliances. It’s compliance with standards and certification of CE ,ROHS, ISO, FC.
Battery rated voltage : 48VDC
Battery Capacity : 100Ah
Input Voltage & Frequency : 145-275V AC, 45-65Hz
MPPT Voltage & PV Power : 60V-150V DC, 2900 W
Operating & Storage ambient temperature : -20 - +50℃ , -25 - +55℃
Battery Type : LiFePO4
Rated power : 1500 W
Output Voltage & Frequency : 220V AC, 50/60 Hz
DC5V , DC12V Output : 120W, 10W
Heat dissipation/Cooling & Operating/Storage ambient : Controlled by exhaust fan & 0-90%

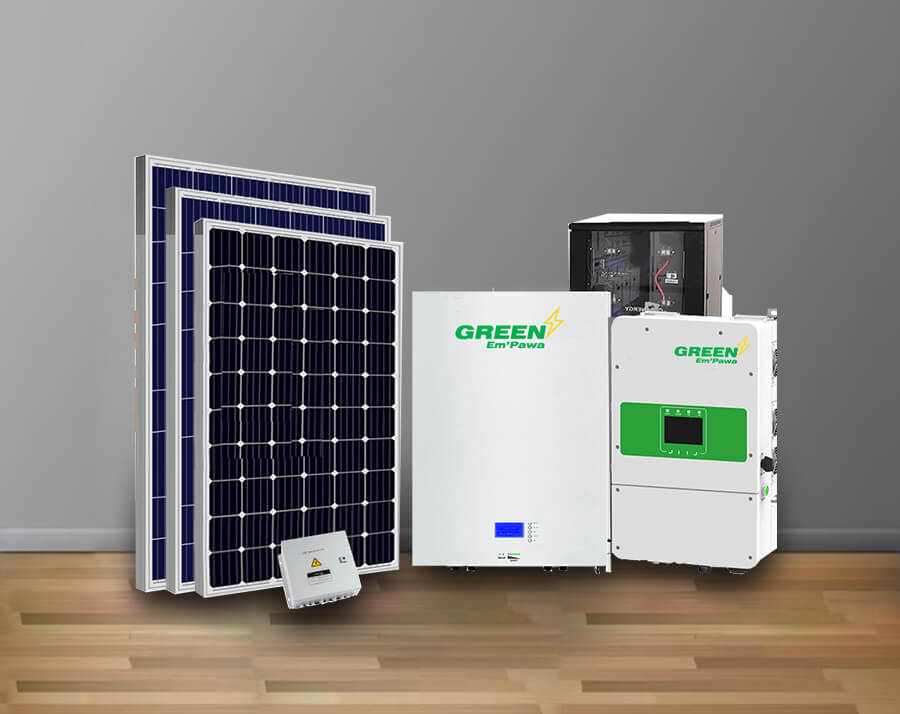

GREEN Solar Integrated Home Power System, this system includes a mono high efficient solar panel with positive tolerance 0~+5W positive tolerance, hybrid inverter 3.6-12KVA, embedded with an intelligent monitoring system which allows it to receive the information from the solar power system such as atmospheric conditions at any time. With an effective Hybrid Energy Storage System, ensure battery backup for emergency use. It has been designed with additional features to lower the possibilities of thermal runaway, solar battery experiences lower rate of capacity loss and bestow with high efficiency of power conditioning capabilities for demand management and power dispatch. In addition to that, the hybrid inverter has an LCD display with inbuilt circuit protection features and MPPT charge controller .
Battery Type : Lifepo4
Protection : IP65
Rated Voltage : 48V
Capacity : 100Ah
GREEN Solar Integrated Power System - 2400W is a multifunctional inverter, combining functions of inverter, solar charger and battery charger provision to make certain the uninterruptible power support with portable size. Embedded with additional features such as double CPU intelligent control technology, energy saving mode, battery saving mode can be set up. It’endows with smart fan control which is safe and reliable with pure sine wave output encompassed with an efficient high precision voltage function. In addition to that, the system has an LCD display with inbuilt output overload, short circuit protection features, compatible with the MPPT built-in solar charge controller. The Solar Integrated Power System supports television, fan and lighting appliances. It’s compliance with standards and certification of CE ,ROHS, ISO, FC. IPS supports appliances in powering up the education, healthcare and industrial facilities.
Battery rated voltage : 25.6VDC
Battery Capacity : 100Ah
Input Voltage & Frequency : 145-275V AC, 45-65Hz
MPPT Voltage & PV Power : 30V-150V DC, 1200 W
Operating & Storage ambient temperature : -20 - +50℃ , -25 - +55℃
Battery Type : LiFePO4
Rated power : 1500 W
Output Voltage & Frequency : 220V AC, 50/60 Hz
DC5V , DC12V Output : 120W, 10W
Heat dissipation/Cooling & Operating/Storage ambient : Controlled by exhaust fan & 0-90%

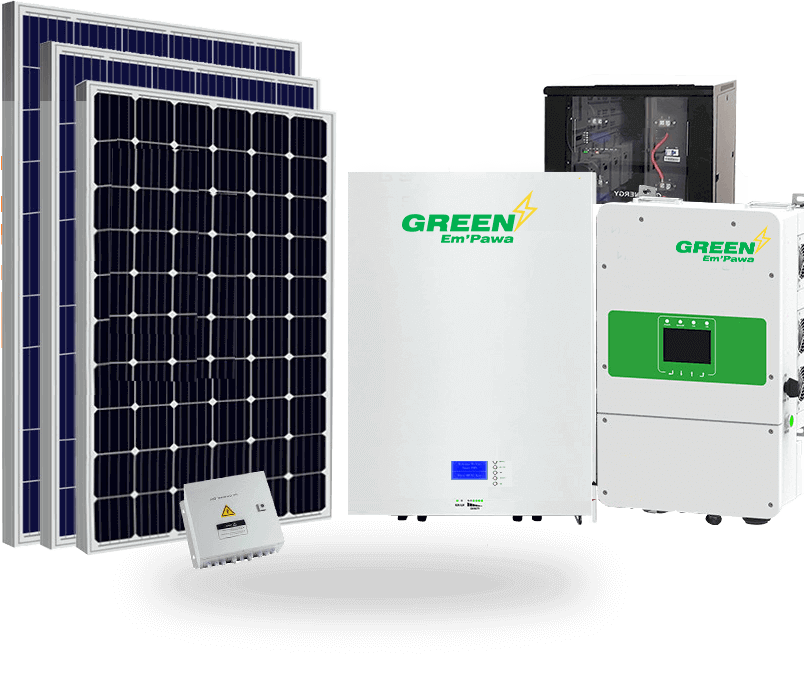

GREEN Solar Home Power System adopts HESS battery system. It has been designed with features such as high power density, long service life, and ease of installation. It is a kind of environmentally friendly backup power system and entails using phosphates rather than cobalt to avoid environmental concerns, which will lower the possibility of thermal runaway because of improper disposal. This type of solar battery ensures a lower rate of capacity loss. Embedded with features such as state of the art power conservation and energy storage technologies, our energy storage system offers high efficiency power conditioning capabilities for demand management, power dispatch etc. It’endows with mono crystalline high efficient solar panels with positive tolerance 0~+5W positive tolerance, composed of hybrid inverter 3.6 - 12KVA, efficient intelligent monitoring system to receive information from the solar power system. It’s highly integrated power storage with inbuilt BMS full protection.
Battery Type : Lifepo4
Rated Voltage : 48V
Protection : IP65
Capacity : 100/150/200Ah

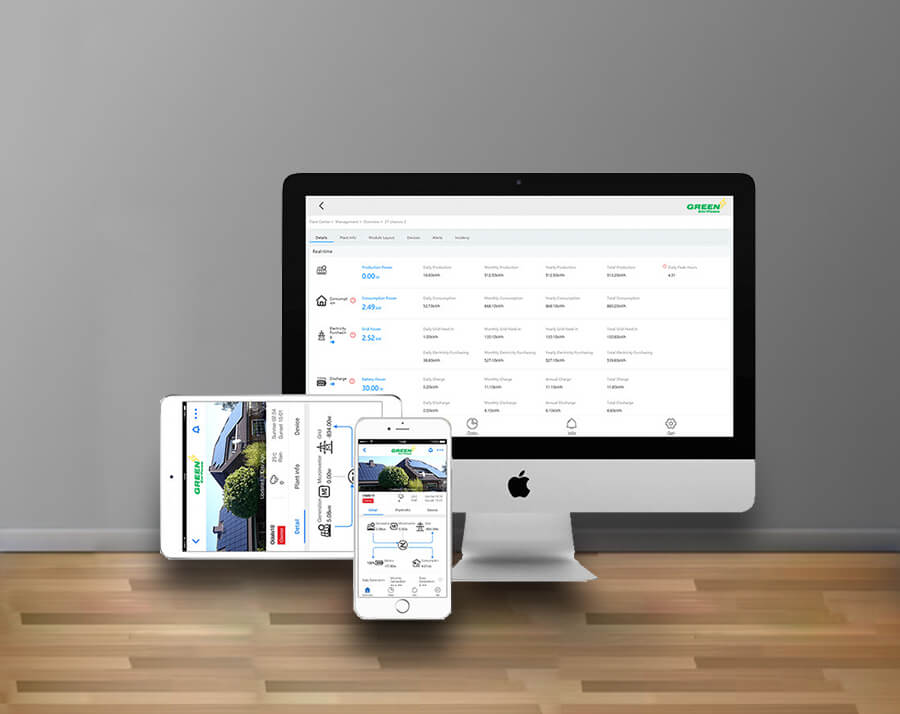

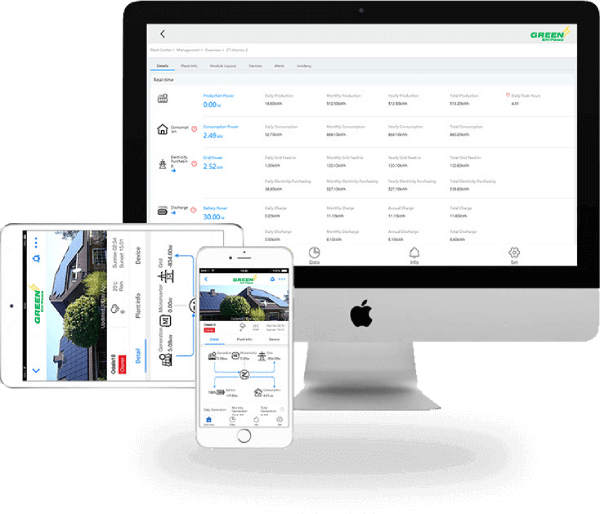

The GREEN Solar Monitoring System enables the remote motoring of the solar system. It's a combination of software and hardware which provides the complete solutions for solar plant performance monitoring. The GREEN Monitor shows the performance ratio of overall sites against forecast generation. Provision to set up automated reports to receive weekly or monthly reports. The system offers information about energy consumption and generation, optimizing energy usage and damage to the solar system. Integrated with web and mobile applications IOS and Android.
Visualization : Web Server
Interface : Ethernet, USB disk
Visualization : Local PC
Interface : Alarm and Regulation Port
Monitoring of Devices : Performance Ratio
Reports Generation : Daily, Monthly, Weekly
GL-SM-COD-A041.1
GL-SM-CPD-A042.1
GL-SM-COE-A044.1
GL-SM-IRP-A046.1
GL-SM-COR-A048.1
GL-SM-COD-A041.2
GL-SM-CPM-A043.1
GL-SM-PNB-A045.1
GL-SM-SPY-A047.1
To lift up living standards sustainably, it is crucial to invest in infrastructure that supports a better quality of life.
Enable Crop value enhancement

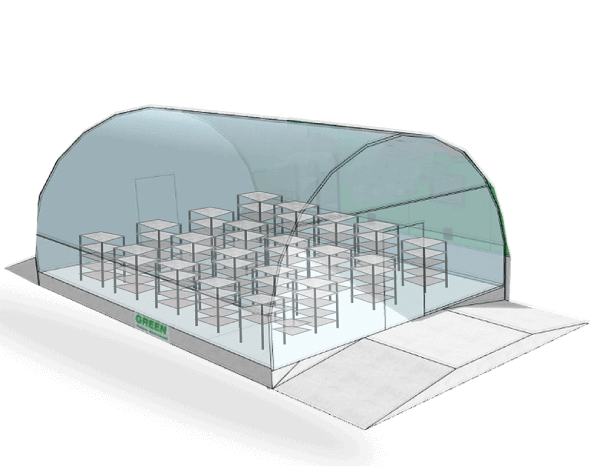

The GREEN Solar Tunnel Cocoa Dryer is an efficient drying mechanism for drying the bulk of cocoa beans at a moderate air temperature with a capacity of 1 - 1.5 tonnes of cocoa beans. It consists of a Greenhouse structure with hot galvanized frameworks, surrounded by polycarbonate for all sides with anti-uv and anti-condensation with transmittance ≥ 85%. Trolley size 1860 * 1500* 800 mm, trolleys endowed with trays, 30 W solar dc fan, doors . The Solar Cocoa Dryer solution can help to tackle post-harvest loss and enhance the resilience against climate change to boost up the economy among farming communities.
Greenhouse Structure
Roof H: 4.5 m ,W: 7m, L : 10 m, Total Area : 70m2
Hot Galvanized Frameworks, Zinc Coated anti-rust, Double-layer PC sheet cover
Transmittance ≥ 83% , HTC : 3.96 W/ m2, Door Size : 2m width 1.86 length
Husk Loader Welding
Solar DC Fan, Charging Mode : Solar Panel
Heat sensor detects the heat when it is above 65 ℃ and makes the fan run automatically
24V DC Axial fan for Air Circulation
Crops Carrying Trolley
Material : SS 304 Food Grade, Trolly Size: 1860 * 1500* 800 mm
Each side has 10 No. of Trays,Total 20 No of Trays
Double side handle & Tray Size: 500 *500*25 mm
Greenhouse Parameter
Wind Load : ≤ 0.50 KN/m2 & Snow Load : ≤ 0.30 KN/m2
Dead Load : 15 Kg/m2 & Hanging Load : 15 Kg/m2, Light Transmittance : 80%
Standards Maintained
Steel structure design inline with GB 50017 - 2003
Steel materials meet the GB700-88 , Steel & Accessories GB/T13912-2002

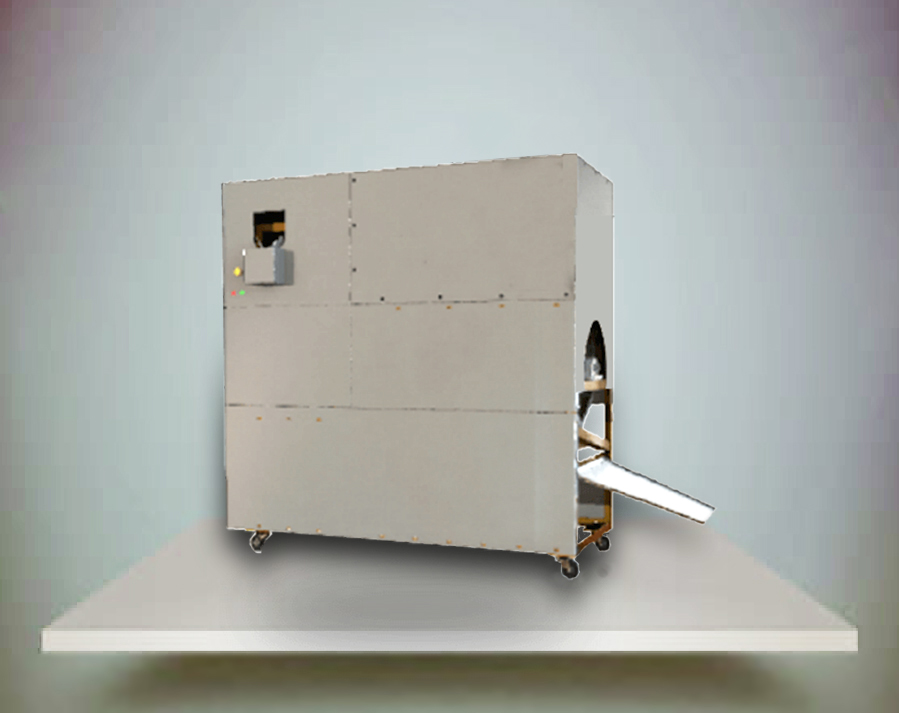

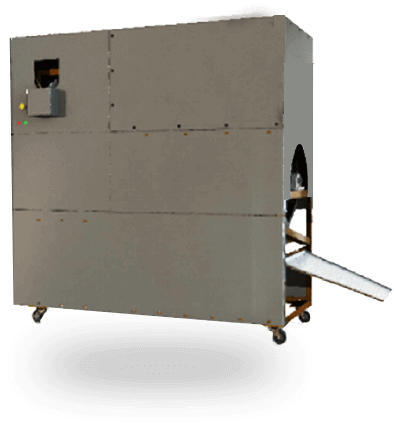

The GREEN Solar Cocoa Pod Breaker features an automation system with an effective mechanism for cutting fresh cocoa pods and screening the cocoa beans. The Solar cocoa pod breaker consists of components such as husk collector, seed collector, husk loader, husk breaking knife and screening cocoa beans. The cutting section is intended to cut fresh cocoa beans into two halves.The husk and cocoa beans screening machine helps to separate cocoa pods and cocoa beans through a sieve. This machine is ergonomic in appearance and simple to operate which ensures to remove 98% of the cocoa beans, boost productivity, enhance the quality of cocoa beans to the highest possible levels, devoid of any hazard, dangers and perils of risks.
Cocoa Pad Breaker Structure
Material : CRCA (cold rolled close annealed) with powder coating
Caster Wheel : CRCA Material
Husk Loader
Husk Loader Assembly : CRCA Material, Food Grade: SS 304
Husk Loader, Cocoa Loading Plate : SS316 Material, Food Grade: SS 304
Loading Rocking Arm : CRCA Material with powder coating
Hex Stucture Assembly
Support Rod Assembly : CRCA Material
Husk Mesh Frame : Husk cross mesh material
Collector Taper Plate
Seed Collector : Sheet Thickness: 2mm, Material:SS316, Weight: 13.5kg
Husk Collector : Sheet Thickness 3mm, Material: SS316, Weight: 12.5kg
Collector Taper Plate
BLDC Motor DC 48V 750W BM1418ZXF brushless motor with Control Panel
Solar Panel 500W with Battery backup 12V/200Ah 1.5kVA off Grid pure sine wave inverter with MPPT Controller

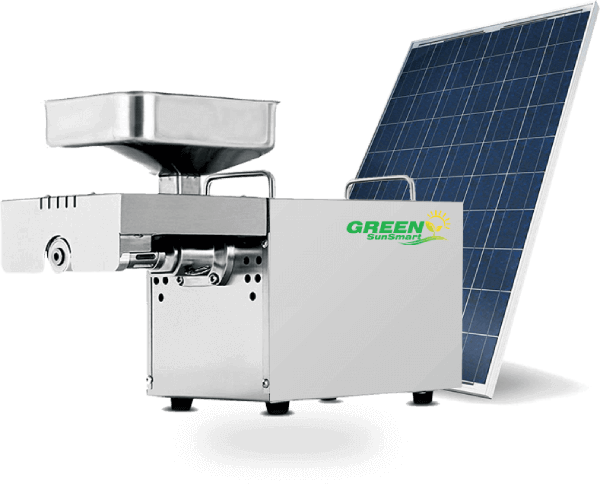

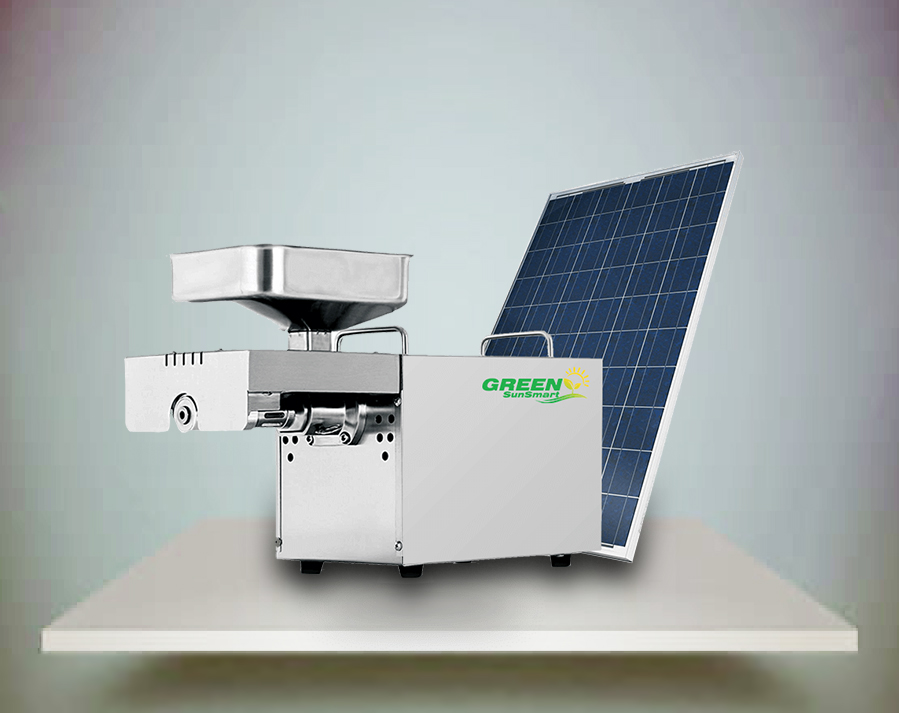

The GREEN’s Solar Coconut/Virgin Oil Extractor, it’s a highly automated and rich in quality production of coconut oil extraction. The coconut oil expeller is encompassed by various quality features and ensures smooth and effective operation. The machine has been tested on various parameters to meet the quality standards and compliance. The Solar powered coconut/virgin oil extractor will make certain for healthy oil extraction, embedded with high quality food grade material. Involves emphatic processing such as cold, hot squeezing with resultant output of pure coconut oil with enrichment in nutrients, vibration free with zero noise etc.
Solar Power Components
Solar Panel : 1000 W with 12V/100Ah battery Backup 3 - 6 hrs
1kVa Off grid pure sine wave Inverter with MPPT Controller
Load Details
100 W BLDC Motor
450 W Heater max 600 W(starting load), 5 Amps plug @ 230V
Temperature Setting
Temperature of oil extracted <50℃
Output Cake Temperature >150℃
Material
Food Grade Material : SS304
Weight Specification
Net Weight 16 Kg
Gross Weight 20 Kg

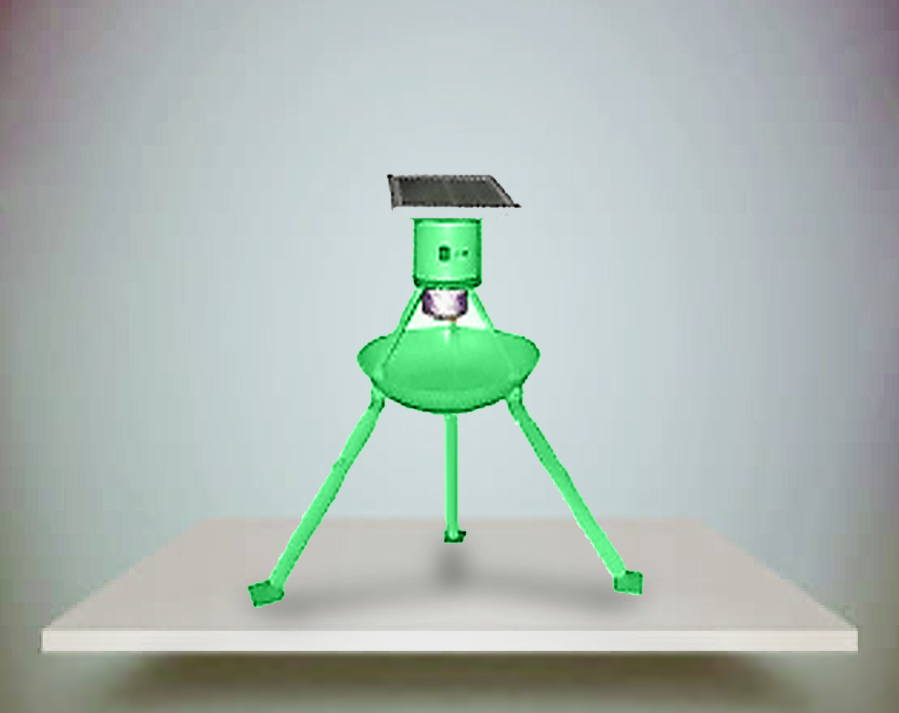

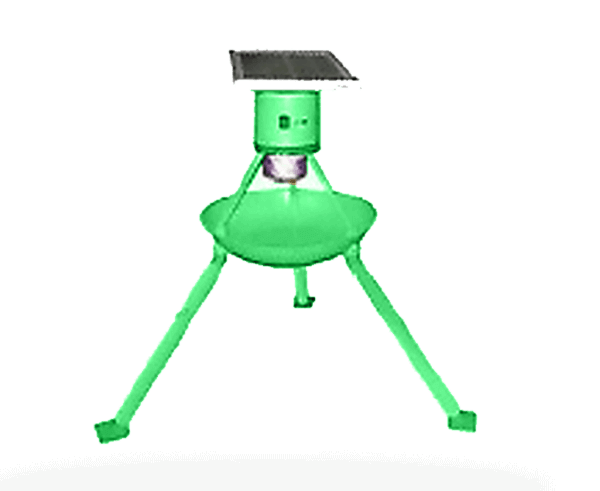

GREEN's Solar Insect Trapper has been designed to control nocturnal insects in agriculture and allied crops. It’s a physical pest control and management device which uses UV lights to lure a wide range of insects that are harmful to crops. The solar powered insect trapper turned on every night automatically to attract insects and turned off early in the morning to charge, it’s a fully automatic system that does not require human interaction on a daily basis to operate trapper which saves manpower required in conventional pest management techniques and enables pollination to improve productivity, and creates a healthy environment.
Solar Power Components
Solar Panel : 5W
Battery : Lithium Battery 11.1V 2.6Ah
Insect Collecting Tray
Material : LLDPE
Type : Oval
Operations
Microcontroller based operation Auto on prior to sunset and Auto turn off after 4 hrs (working time : 4 hrs)
Lamp
UV LED array of 24 Nos - 3.2 V/ 20 ma or Array of 12 Nos – 3.2 V / 30 ma
Output : 3 Watts
Controller & Battery
Controller & Battery Discharge Protection low Battery and Rain Protection

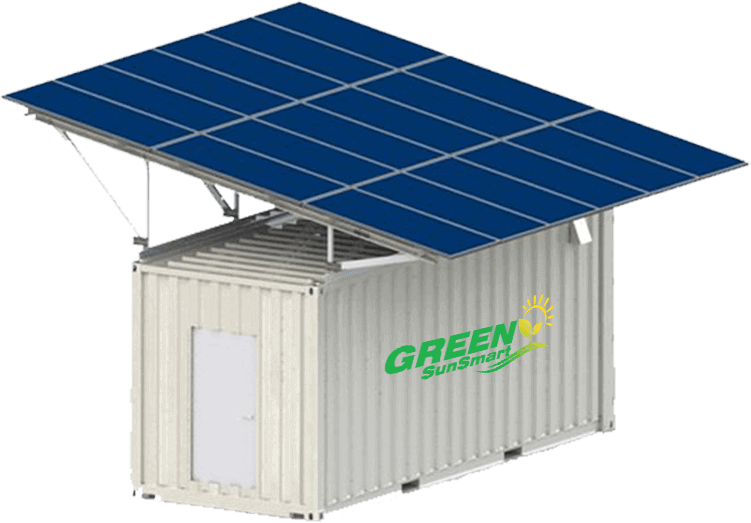

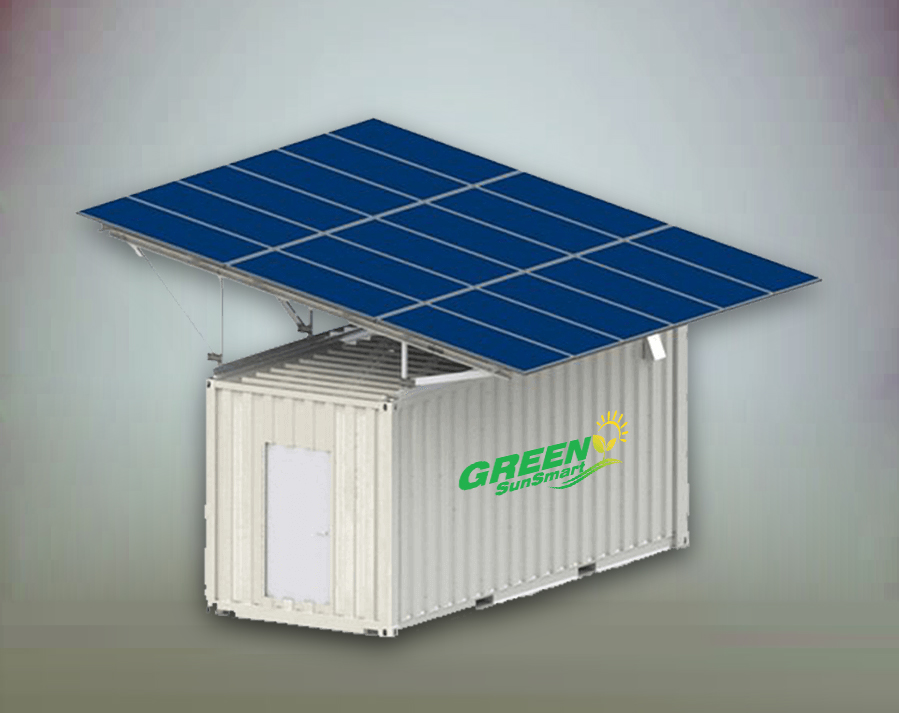

GREEN’s Cold Storage is a Solar Powered Cold Storage System that accommodates 5-6 metric tonnes of fresh horticulture/agricultural produce. It ensures to to improve food security by reducing 30% wastage of perishable produce.Coupled with smart temperature controls, humidity, and air quality parameters inside at recommended conditions. This extends the freshness of fruits, vegetables and other perishable food from 2 days to about 21 days. Ensure maximum efficiency thereby minimizing energy requirements and bringing down the cost of production and ensuring seamless operations. Solar powered cold storage systems will enhance agriculture production and income, reduce waste, improve food security and avoid GHG emissions from fossil fuel-powered alternatives.
Product Capacity
Small Units : 2 - 3 MT
Medium Units : 10 MT
Large Units : 5000 MT
Solar Power Components
3KW Solar Panel
15 KW Solar Panel
125 KW Solar Panel
Temperature Range
0 to 15 ℃
0 to 15 ℃
-4 ℃ to high 20 ℃
Cold Room Size m3
3.8 * 2.2 * 2.44
6 * 4.6 * 2.3
4 ( 21 * 16 * 13.7)

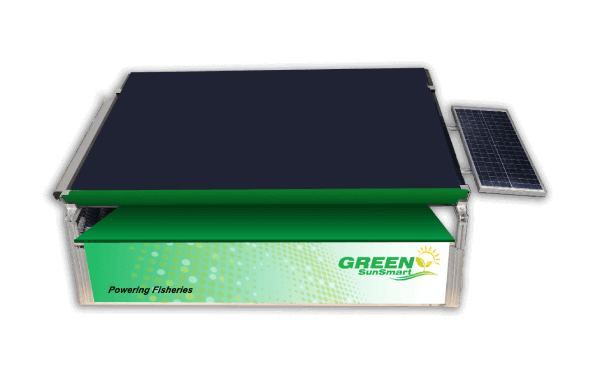

The GREEN Solar Portable Box Cocoa Dryer is intended for smallholder rural farmers. With a capacity of 40kg - 60kg of cocoa beans in a micro-enterprise environment, this dryer is ideal for high-quality natural preservation. The components include a hot air manifold, 16 pcs material trays, fans and dryer cabinet and solar air collector tilts to accommodate any latitude or season. Entire dryer can swivel on a fixed table so the operator can rotate units to track the sun. The system is stable and efficient without debugging, the angle of the solar air collector and solar panel can be adjusted and is easy to install and operate.
Solar Power Components
Solar Panel : 100W, Solar DC fans,12V
Battery : Deep cycle automotive type (optional)
Crops Carrying Trays
Quantity of Trays: 16 PCS Material : Stainless steel, Drying area : Total tray surface = approx 5 sq.M
Double side handle & Tray Size: 640*460 mm, total tray surface = approx 5 sq.M
Solar Collector
Corrugated and painted steel with aluminum frame
Solar collector adjustable angle range: 30 to 40 degrees
Dimension
Size: 1050*2500*1060（H）
Standards Maintained
EN 61000-6-4:2007+A1:2011
EN 61000-6-2:2005

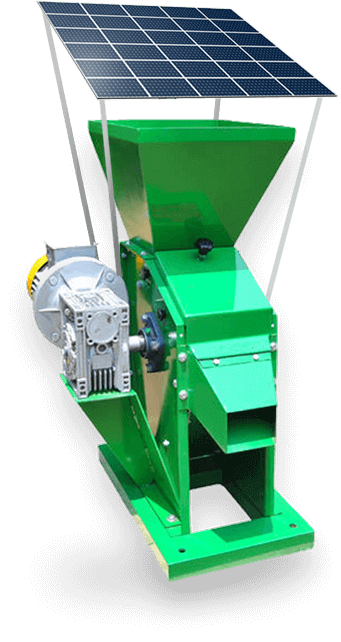

GREEN’s Solar Coffee Pulping Machine will enrich coffee production and improve the quality of coffee. It’s a portable design with an energy efficient BLDC motor, 100% solar powered direct drive operation, enabling easy adjustment, also robust with rust prevention and there are plumbers block bearings that are fitted to rotate for hand operation mode. The Solar Coffee Pulping machine will increase the coffee production, maintain quality standards and boost the economic growth of rural farmers. It removes the coffee pulp and mucilage at the same time there is no need for fermentation and further process, enhancing the livelihood and economic growth of smallholder coffee farmers with zero pollution and less maintenance.
Input Capacity
Input Capacity of ripe coffee cherry
fruits : 800 - 1000 Kg/hr
Weight Specification
Net Weight 120 Kg
Gross Weight 200 Kg
Efficiency Rates
Peeling Range ≥ 98%
Broken Rate ≤ 2%
Dimension
Size : 1300 (H) * 530 (W) * 740(L)
Solar Power Components
Solar Panel 500W with battery backup 12V/200 Ah
1.5 kVa Off grid pure sine wave inverter with MPPT controller
Working Hours : 6 - 8 hrs
GREEN's Solar Peanut Breaker has been specially designed for removing shells and obtaining perfect kernels, a peanut sheller machine which is powered by solar energy which is used to remove hard shells of the peanut. The whole peanut shell separator machine frame is made of high quality steel and the shelling chamber is made of stainless steel. It consists of a hopper, crushing chamber, blower unit and the frame for the support, easy to operate and the system will separate the shells and kernels with high efficiency and almost without damage to the kernel and the shelling rate can be greater than 95%, the broken rate is less than 5%. The process of removing the outer- thin skin of peanuts with great ease and simultaneously breaking it into two parts, so that the taste of the peanut will be enhanced and increase the economy of rural farmers.
Solar Power Components
Solar Panel : 2.5 KW with battery
Material
Grade SS 304
Product Capacity
Input Capacity : 20 - 25 kg
Production Capacity : 98%
Efficiency
Breaking Rate < 5%
Cleaning Rate ≥ 99%

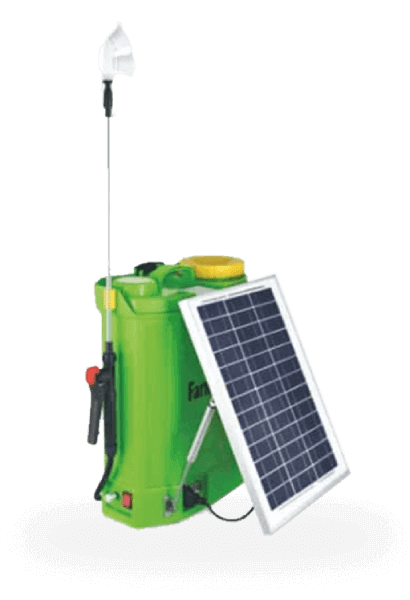

Sprayers are mechanical gadgets that are particularly intended to shower pesticide rapidly and effectively for protecting crops from pests. The GREEN’s solar powered pesticide sprayer has been designed such that potential energy of the pesticides stored in the tank and additional spring force which generates required velocity during spraying ensures to remove pests and produces better yield. The components are solar panel, pump, dc motor, battery, pesticide tank, level sensor and buzzer for low level pesticide alert. The solar panel collects radiation from the solar and this energy is stored in the battery, the dc pump has been below the pesticide tank mounted and uses the battery to run the dc pump. The system is encompassed with a level sensor which is used to measure the pesticide level and the buzzer ensures a warning due to low levels of pesticide in the pesticide tank. It is an ergonomic equipment with zero noise and pollution.
Solar Power Components
Solar Panel Nominal Power : 20W
Maximum voltage at Pmax : 18V
Maximum current at Pmax : 1.11 A
Temperature Coefficient :0.00157%/˚C
Pesticide Storage Tank
Tank Capacity : 16 litres
Material : PVC
BLDC Motor
Voltage : 12V DC,
Maximum Pressure: 0.45 Mpa,
Maximum Current : 1.8 A
Battery
Battery Capacity : 12 V, 8Ah
Standby use : 13.5V - 13.8V
Cyclic use : 14.5V - 14.9 V
Pump
Type : Centrifugal Pump
Liquid Discharge : 2.9 litres/mins
Speed : 3600 rpm
Lorem ipsum dolor sit amet consectetur. Pulvinar suspendisse sollicitudin vestibulum mauris malesuada ultrices semper porta. Commodo tellus in sed mauris lectus at. (SH1)
KEEP UP WITH THE LATEST, FOR ALL THINGS GREEN. DROP YOUR EMAIL BELOW, AND LET’S STAY CONNECTED. (SH1)
